Tube Fittings
Shree Arbuda Steel is a trusted manufacturer, stockist, and exporter of high-quality Tube Fittings, designed to meet global standards such as ASTM, ASME, DIN, and ISO. We offer a wide variety of fittings including Compression Tube Fittings, Instrumentation Fittings, Ferrule Fittings, and Hydraulic Fittings, available in Stainless Steel, Carbon Steel, Alloy Steel, and corrosion-resistant alloys. Our tube fittings ensure leak-proof connections, excellent mechanical strength, and high pressure and temperature tolerance, making them ideal for applications in petrochemical, power generation, oil & gas, pharmaceuticals, food processing, and instrumentation systems. With precision engineering, robust construction, and reliable performance, we provide tube fitting solutions that ensure safety, efficiency, and long service life for your critical fluid and gas transfer operations.

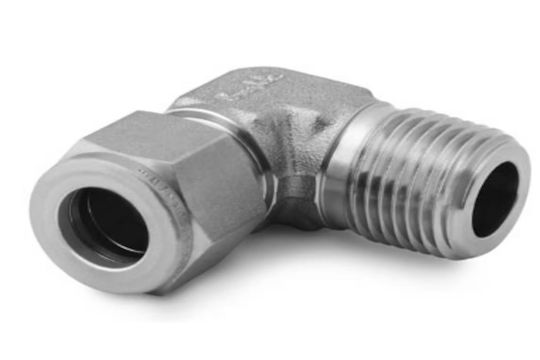

Elbow Fitting

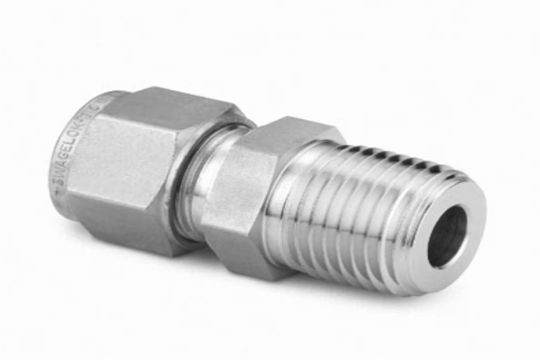

Straight Fitting

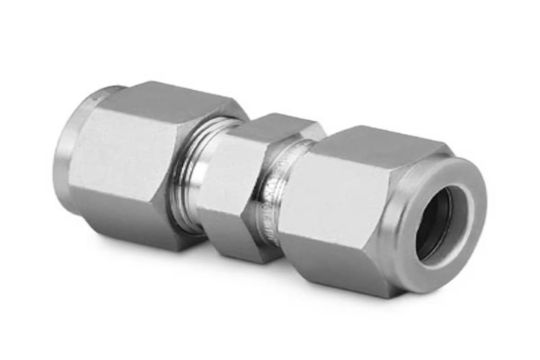

Union Fitting
Types of Male Elbows
| Type | Description |
|---|---|
| 90° Tube Elbow | Connects two tubes at a right angle |
| 45° Tube Elbow | Connects tubes at a 45-degree angle |
| Male Elbow | Tube OD × Male Thread (e.g., NPT, BSPT) |
| Female Elbow | Tube OD × Female Thread (e.g., NPT, BSPT) |
| Bulkhead Elbow | Elbow fitting passing through a panel or enclosure |
| Reducing Elbow | Used to connect tubes of different outer diameters |
Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel 304 / 316 / 316L, Brass, Carbon Steel, Alloy 400, etc. |
| Standards | ASTM A276, A479 / ASME B31.1, B31.3 / DIN 2353 / ISO 8434-1 |
| Tube OD Range | 1/8" to 2" (3mm to 50mm) |
| Thread Types | NPT, BSPT, BSPP, UNF, Metric |
| Working Pressure | Up to 6000 psi (varies by size & material) |
| Temperature Range | -196°C to +400°C (depending on material & seal type) |
| Seal Type | Metal-to-metal, Elastomer O-Ring (optional for enhanced sealing) |
| Connection Type | Double Ferrule Compression, Welded, or Threaded |
Key Features
- Leak-proof & torque-free seal
- Easy installation and reusability
- Excellent vibration resistance
- High-pressure and high-temperature suitability
- Corrosion-resistant for harsh environments
Temperature Resistance by Material
| Material | Min Temp | Max Temp |
|---|---|---|
| SS 316L | -196°C | +426°C |
| Brass | -60°C | +200°C |
| Monel 400 | -100°C | +480°C |
| Inconel 625 | -253°C | +980°C |
| Carbon Steel | -20°C | +400°C |
Explore Our Products

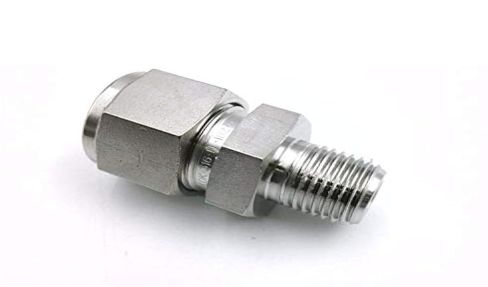

Male Connector
Female Connector

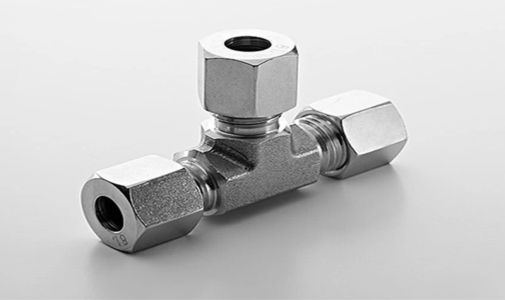

Tee Ferrule
