Product Range

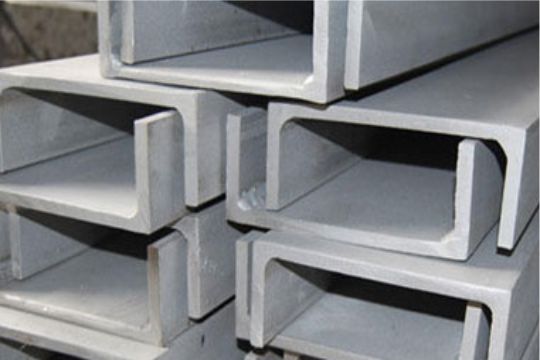

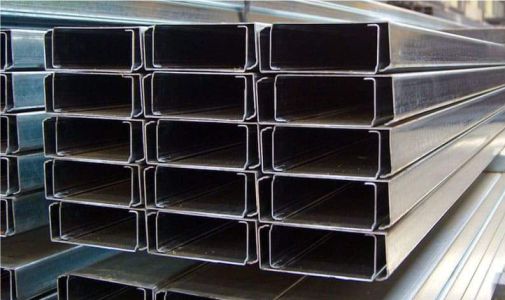

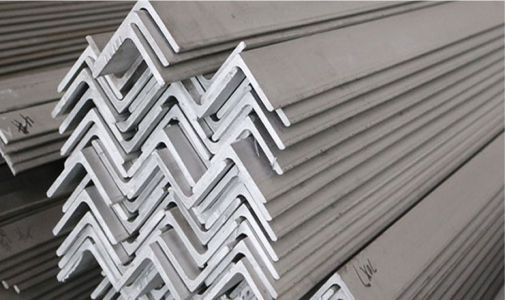

25 x 25 x 3/5, 35 x 35 x 5, 40 x 40 x 5/6, 45 x 45 x 4/5/6, 50 x 50 x 5/6, 60 x 60 x 6/8, 65 x 65 x 6/8/10, 75 x 75 x 6/8/10, 80 x 80 x 6/8, 90 x 90 x 6/8/10,100 x 100 x 6/8/10/12, 110 x 110 x 8/10/12, 130 x 130 x 10/12, 150 x 150 x 10/12,150 x 150 x 16/20 200 x 200 x 16/20 MS Channels has wide range of applications. Mostly MS Channels are used as supports and guide. These are roll-formed products.

It is demanding as Supporting frames for Structures, Base frames of heavy machinery and automotives. It is used as purling for sheds and scaffoldings in construction Industries etc. A channel is a right angle “C” section. So it is also called C Channels. Along with beams, channels are demanding in structural applications.

Channel Size in mm Weight Kg/m Size In mm Weight Kg/m
75X40 7.1 200X75 22.3
100X50 9.6 250X80 30.6
125X65 13.1 250X82 34.2
150X75 16.8 300X90 36.3
175X75 19.6 400X100 50.

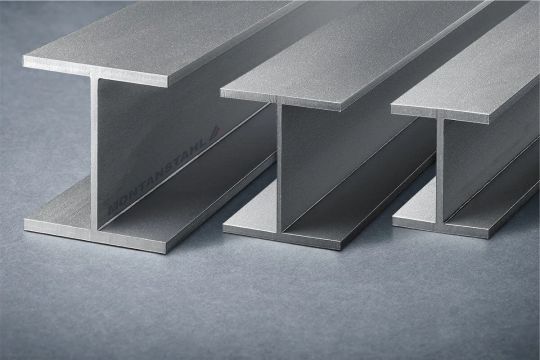

Beams are generally used in the construction of bridges. It is also used in erecting steel structure. We offer broad spectrum of beams which has an “I” cross section and contain its application in frames of industrial buildings and Sheds.

At Champion Metal Corporation we offer best quality beam with varied configurations. These are provided with high tensile, sheer and compressive stresses internally due to the loads applied to them. it is highly demanded in structural frames of industrial sheds and large buildings.

We provide custom product as per your specification.

100 x 50, 125 x 70,150 x 75, 175 x 85, 200 x 100 , 250 x 125, 300 x 140, 350 x 140, 400 x 150, 450 x 150, 500 x 180, 600 x 210 ,100 x 116 ,150 x 150 , 152 x 152 , 200 x 150, 200 x 200 , 250 x 250
Alloy:- 1xxx, 2xxx, 3xxx, 4xxx, 5xxx, 6xxx, 8xxx
Width Range:-800-1500 mm
Standard:-915, 1000, 1159, 1220, 1300, 1321, 1500 mm
Length Range:-1830-4350 mm
Standard:-2440, 2540, 2745, 3000, 3050 mm
Thickness:-0.56-4.00 mm (length & width for sheets having thickness of over 4.00 mm is subject to confirmation)
Weight:- Depends on dimensions
Temper:-O, H1, H2, H3, H4, T4, T6
Finish:-Mill Finish

Application

• ➤ Pipeline Engineering
• ➤ Oil & Gas - upstream and downstream
• ➤ Mechanical and Plant Engineering
• ➤ Marine
• ➤ Waste Water
• ➤ Chemical and Petrochemical
• ➤ Power Industries (nuclear, natural gas, wind, solar)
• ➤ Aerospace
• ➤ Food Processing

Size And Theoretical Weight Of Equal Angle Bars
