Sheets Plates & Coils
Shree Arbuda Steel is a trusted manufacturer, stockist, and exporter of premium-quality Sheets, Plates, and Coils, manufactured to meet international specifications such as ASTM, ASME, DIN, and EN. We offer a wide range of thicknesses, widths, and lengths in materials like Stainless Steel, Carbon Steel, Alloy Steel, and other specialty alloys. Our products are known for their superior surface finish, excellent mechanical strength, and outstanding corrosion resistance, making them ideal for use in automotive, construction, pressure vessels, shipbuilding, oil & gas, and chemical processing industries. With strict quality control and prompt delivery, we ensure high-performance solutions tailored to customer requirements.

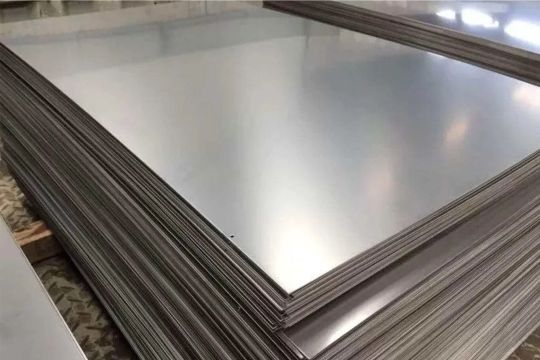

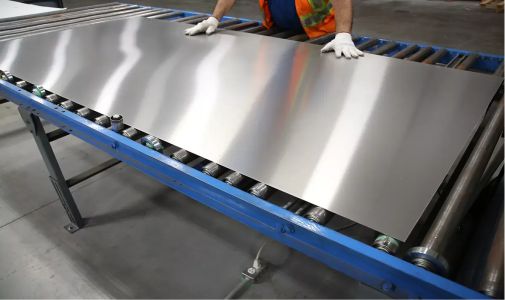

Stainless Steel Sheets

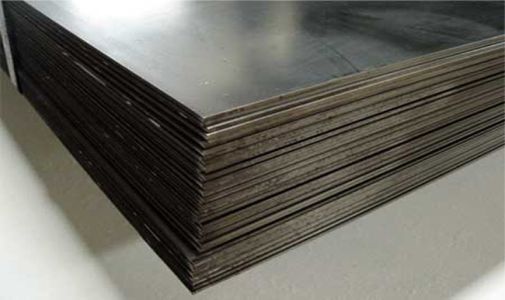

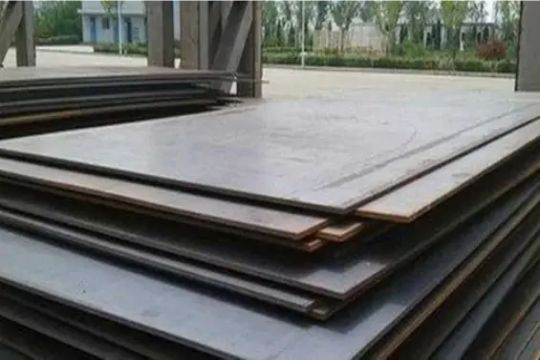

Carbon Steel Sheets Plates

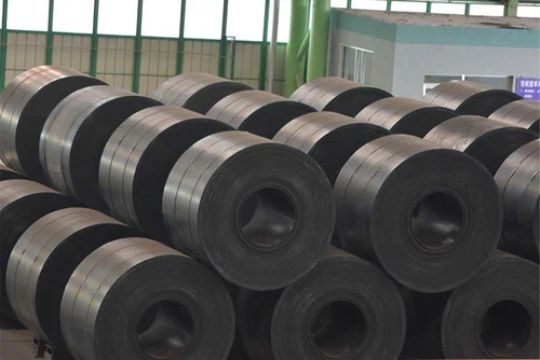

Alloy Steel Coils & Bars
Stainless & Duplex Steel
| Sheet/Plate Specification | |
|---|---|
| Range | 0.1 mm to 100 mm thick, up to 2500 mm width & up to 8000 mm length, available with NACE MR 01-75 |
| Stainless Steel Grades | ASTM / ASME SA 240: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316TI, 317, 317L, 321, 321H, 347, 347H, 409, 410, 410S, 430 |
| Duplex Steel Grades | ASTM / ASME SA 240 UNS: S31803, S32205, S32550, S32750, S32760 |
Carbon & Alloy Steel
| Carbon Steel & Alloy Steel Plate Specification | |
|---|---|
| Range | 3 mm to 100 mm thick, up to 2500 mm width, up to 12500 mm length, available with NACE MR 01-75 |
| Carbon Steel Grades | ASTM / ASME A516 / A517 GR. 60 / 70, IS 2062, IS 2002 |
| Alloy Steel Grades | ASTM / ASME A387 GR. F5, F9, F11, F12, F22, F91 |

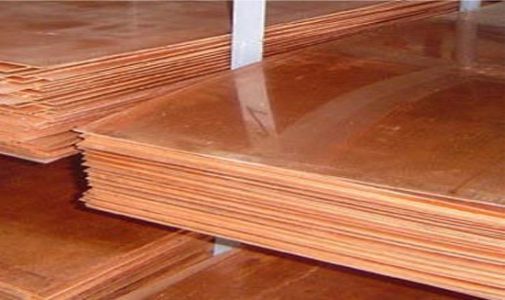

Nickel & Copper
| Nickel Alloy Sheet & Plates Specification | |
|---|---|
| Range | 5 mm to 100 mm thick, up to 2500 mm width & up to 6000 mm length, available with NACE MR 01-75 |
| Nickel Alloy Grades |
Nickel: ASTM / ASME SB 162 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201) Monel: ASTM / ASME SB 127 UNS 4400 (Monel 400) Inconel: ASTM / ASME SB 424 UNS 8825 (Inconel 825), ASTM / ASME SB 168 UNS 6600 (Inconel 600), UNS 6601 (Inconel 601) Inconel: ASTM / ASME SB 443 UNS 6625 (Inconel 625) Hastelloy: ASTM / ASME SB 574 UNS 10276 (Hastelloy C276) Alloy 20: ASTM / ASME SB 462 UNS 8020 (Alloy 20 / 20 CB 3) |

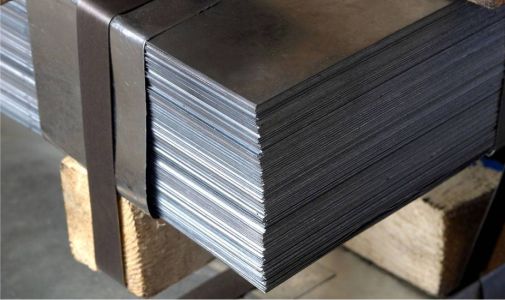

Hastelloy
| Hastelloy Sheet & Plates Specification | |
|---|---|
| Grades |
Hastelloy C-22 Hastelloy C-276 Hastelloy C-2000 |
| Available Forms |
Hastelloy Sheet Hastelloy Coil Hastelloy Strips Hastelloy Plates Hastelloy Circle Hastelloy Ring |
Inconel
| Inconel Sheet & Plates Specification | |
|---|---|
| Grades | Inconel 600 Inconel 601 Inconel 625 Inconel 625LCF Inconel 686 Inconel 718 Inconel 800 Inconel 825 Inconel X-750 |
| Standards |
ASTM / ASME SB 168 ASTM / ASME SB 424 ASTM / ASME SB 443 |

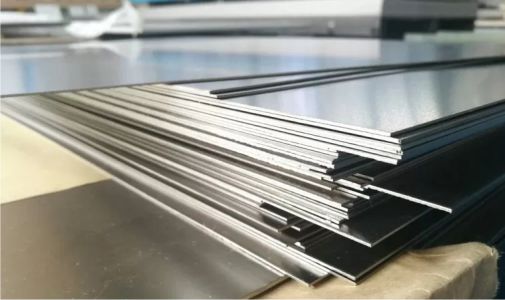

Incoloy
| Incoloy Sheets & Plates Specification | |
|---|---|
| Grades | Incoloy 800, Incoloy 825, Incoloy 925, Incoloy A-286, Incoloy DS |
| Type | Seamless / ERW / Welded / Fabricated |
| Standards | ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751 |
| Applications | Petrochemicals Plants, Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals, Textile Machinery |

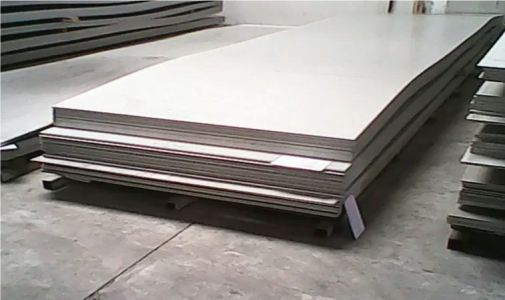

Monel
| Monel 400 & Monel K500 Sheets & Plates Specification | |
|---|---|
| Grades | Monel 400, Monel K500 |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Square, Rectangular, Hydraulic, etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
| Salient Features | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Draw & Expansion |

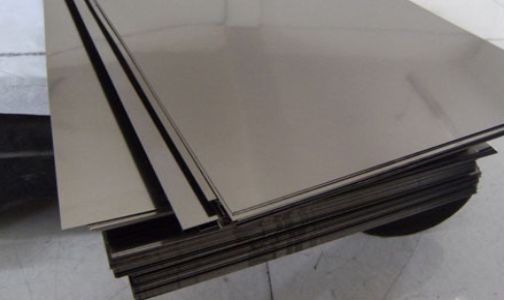

Titanium
| Titanium Sheets and Plates Specification | |
|---|---|
| Material | Titanium and Titanium Alloys |
| Grades |
Pure Titanium: GR1, GR2, GR3, GR4 Titanium Alloy: GR5 (6% Al, 4% V), GR6 (5% Al, 2.5% Sn), GR7 (Titanium + Pd), GR9 (3% Al, 2.5% V), GR10 (11.5% Mo, 6% Zr, 4.5% Sn), GR11 (Titanium + Pd), GR12 (0.3% Mo, 0.8% Ni) |
| Thickness | 0.3mm - 60mm |
| Length | 6000mm |
| Standards | ASTM B265, ASTM 4911, F67, F136 |
| Type | Hot and Cold Rolled |
Stainless Steel Sheet
| Standard | Product Form |
|---|---|
| ASTM B265 (Gr2) | Sheet, Strip, and Plate |
| ASTM B338 | Tube, Seamless and Welded |
| ASTM B348 (Gr2) | Bars and Billets |
| ASTM B861 | Seamless Pipe |
| ASTM B863 | Wire |
| ASTM F67 (Gr2) | Unalloyed Titanium for Surgical Implants |
Stainless Steel Sheets Specification
| Stainless Steel Sheets and Plates Specifications | |
|---|---|
| Grades Available | 304, 304L, 316, 316L, 321, 310, 310S, 904L, 17-4PH, and more as per customer requirements |
| Thickness Range | From 0.3 mm to 100 mm (custom thicknesses available) |
| Width | Up to 2500 mm |
| Length | Up to 6000 mm, or custom-cut based on requirements |
| Finish Options |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to rust, stains, and corrosion, ideal for harsh environments |
| Standards & Certifications |
|
| Applications |
|
Stainless Steel Sheets Thickness
| Thickness in. (mm) | Width 36" (914.4mm) | Width 48" (1,219mm) |
|---|---|---|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.20) |
Stainless Steel Weight Chart
| Thickness in mm | Size in mm (2000 x 1000) | Size in mm (2500 x 1250) | Size in mm (3000 x 1500) | Weight kg/m² |
|---|---|---|---|---|
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| 1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 12.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
