Pipes & Tubes
Shree Arbuda Steel is a renowned stockist, supplier, and exporter of high-quality Stainless Steel Pipes & Tubes, offering both Welded (ERW) and Seamless options. We specialize in premium grades such as 304, 304L, 316, 316L to meet the demanding needs of industries worldwide. Our pipes and tubes are known for corrosion resistance, durability, and long service life. With a strong focus on quality, timely delivery, and global standards (ASTM, ASME, DIN), we proudly serve industries like oil & gas, construction, and marine sectors.

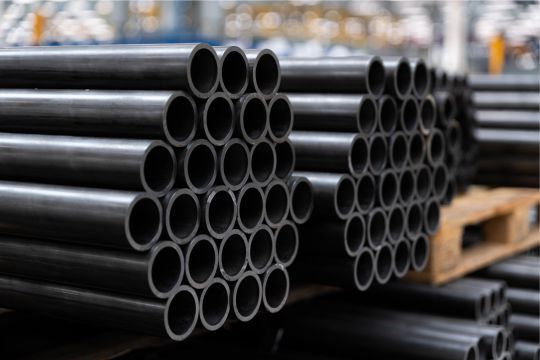

Seamless Pipes

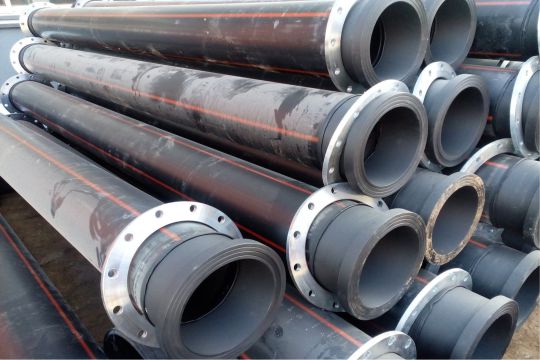

Fabricated Custom Pipes

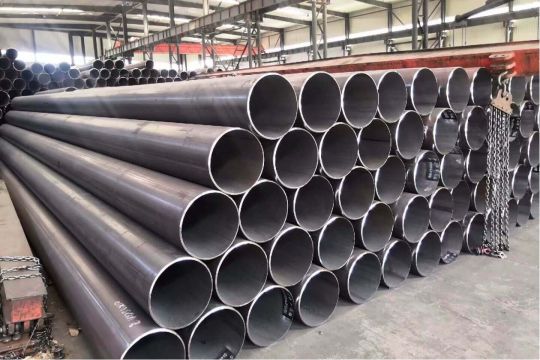

Welded (ERW) Pipes

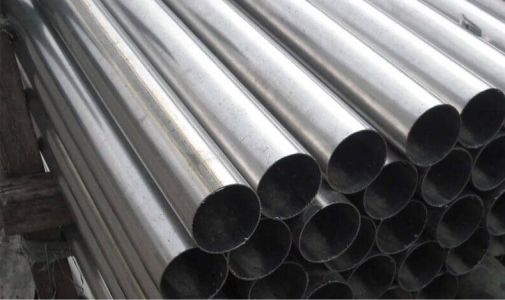

Stainless & Duplex Steel
| Range | 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
|---|---|
| Form | Seamless / Erw / Welded in Round & Square . |
| Stainless Steel |
ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L . ASTM / ASME SA 358 CL 1 & CL 3 GR . 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 321 , 321H , 347 . |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |

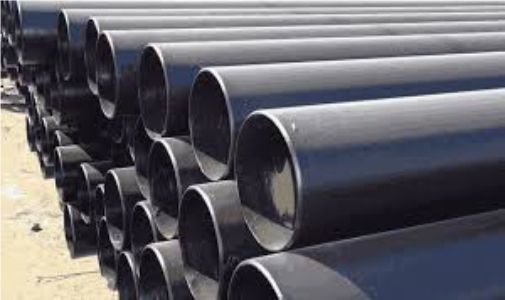

Carbon & Alloy Steel
| Range | 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS |
|---|---|
| Form | Seamless / Erw / Welded in Round & Square . |
| Carbon Steel |
ASTM / ASME A 53 GR. A, B ASTM / ASME 106 GR. A, B, C API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 70. ASTM / ASME A 691 GRA, B, C |
| Alloy Steel |
ASTM / ASME A 335 GRP 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91 ASTM / ASME A 691 GRP1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91. |

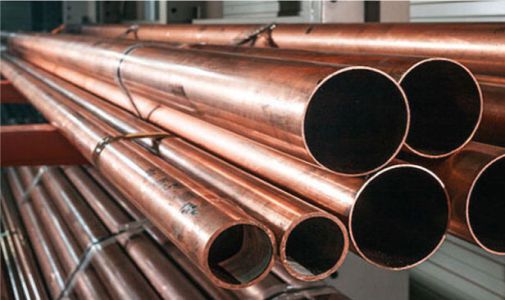

Nickel & Copper
| Range | 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS |
|---|---|
| Form | Seamless / Erw / Welded in Round & Square. |
| Nickel Alloy |
ASTM / ASME SB 163 UNS 2200 (NICKEL 200) ASTM / ASME SB 163 UNS 2201 (NICKEL 201) ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400) ASTM / ASME SB 464 UNS 8020 (ALLOY 20 / 20 CB 3) ASTM / ASME SB 704/705 UNS 8825 INCONEL (825) ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600) ASTM / ASME SB 167 UNS 6601 (INCONEL 601) ASTM / ASME SB 704/705 UNS 6625 (INCONEL 625) ASTM / ASME SB 619/622/626 UNS 10276 (HASTELLOY C 276) |
| Copper Alloy |
ASTM / ASME SB 111 UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500. ASTM / ASME SB 466 UNS NO. C 70600 (CU-NI-90/10), C 71500 (CU-NI-70/30) |
Hastelloy
| Grades | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 |
|---|---|
| Type | Seamless / Erw / Welded / Fabricated |
| Standard |
Hastelloy Seamless Pipe Hastelloy ERW Pipe |
| Industries Range |
Petrochemicals Plants Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals, Textile Machinery. |

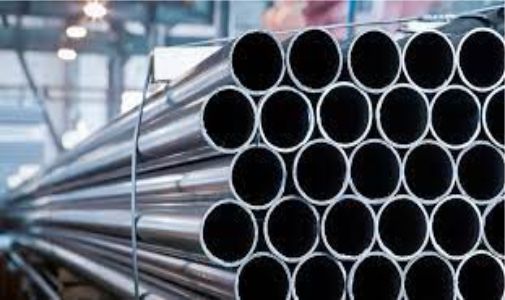

Inconel
| Grades | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 |
|---|---|
| Type | Seamless / Erw / Welded / Fabricated |
| Range | 15 NB up to 600 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
| Industries Range |
Petrochemicals Plants Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals, Textile Machinery. |

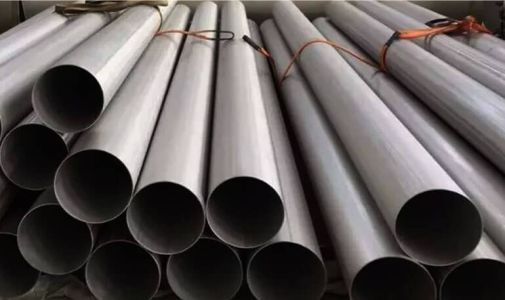

Incoloy
| Grades | Incoloy 800, Incoloy 825, Incoloy 925, Incoloy A-286, Incoloy DS |
|---|---|
| Type | Seamless / Erw / Welded / Fabricated |
| Standard | ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751 |
| Range |
Petrochemicals Plants Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals. |

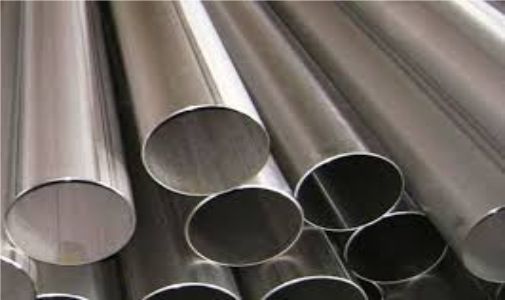

Monel
| Grades | Monel 400, Monel K500 |
|---|---|
| Type | Seamless / Erw / Welded / Fabricated |
| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |

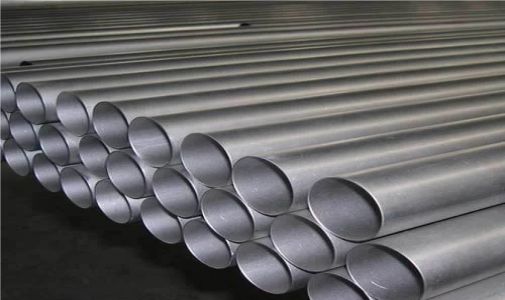

Titanium
| Grades | Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23 |
|---|---|
| Type | Seamless / Erw / Welded / Fabricated |
| Range | 15 NB UP TO 600 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 etc. |
| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
Tantalum
| Grades | Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23 |
|---|---|
| Range | 15 NB up to 1500 NB in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS available with NACE MR 01-75 |
| Standard | ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE |
| Types | Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Dimensional accuracy High strength Durability Corrosion resistance Excellent finish |
ASTM A106 Grade B Carbon Steel Pipes Specification
| Specification | Description |
|---|---|
| Standard | ASTM A106 |
| Grade | Grade B |
| Type | Seamless and Welded |
| Size Range | 1/2" - 36" |
| Wall Thickness | SCH 40, SCH 80, SCH 160, XXS |
| Length | Single Random, Double Random, Cut Length |
| Ends | Plain End, Beveled End, Threaded |
| Surface Coating | Black or Galvanized |
Chemical Composition of ASTM A106 Grade B Carbon Steel Pipes
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.30% max |
| Manganese (Mn) | 0.29–1.06% |
| Phosphorus (P) | 0.035% max |
| Sulfur (S) | 0.035% max |
| Silicon (Si) | 0.10% min |
| Chromium (Cr) | 0.40% max |
| Copper (Cu) | 0.40% max |
| Nickel (Ni) | 0.40% max |
| Molybdenum (Mo) | 0.15% max |
Specification of Stainless Steel 304/304L/304H Seamless Welded Pipes And Tubes
| Stainless Steel Pipe Specification | ASTM A312, A358 / ASME SA312, SA358 |
|---|---|
| SS Tube Specification | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Pipe Size | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes |
| Tube Size | 1/2" OD to 8" OD |
| Thickness Range | 0.3mm – 50mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated Pipes |
| Form | Round, Square, Rectangular, Oval, Hydraulic etc. |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Threaded |
| End Protection | Plastic Caps |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Inspection, Test Reports |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
| Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customer Requests |
| Specials | Sizes and Specifications other than above can be manufactured on request |
Exporters of Carbon Steel Pipe & SS Pipes and Tube
| Saudi Arabia | Qatar | Canada | Bangladesh |
| Oman | UAE | Venezuela | Turkey |
| Kuwait | Africa | United Kingdom | Singapore |
| Netherlands | China | Malaysia | Sri Lanka |
Standards and Certification.
| Property | Details |
|---|---|
| Material | Carbon Steel (commonly ASTM A106, ASTM A53, API 5L) |
| Grades | ASTM A106 Grade A, B, C ASTM A53 Grade A, B API 5L B, X42, X46, X52, X56, X60 |
| Composition | Carbon (0.05% to 2.0%) Manganese (up to 1.65%) Phosphorus and Sulfur (up to 0.05%) |
| Yield Strength | 250-540 MPa (depending on grade and size) |
| Tensile Strength | 400-700 MPa (depending on grade and size) |
| Elongation | 20-30% (depending on grade and wall thickness) |
| Hardness | 120-170 HB (depending on carbon content and heat treatment) |
| Thickness | 1.65 mm to 40 mm (depends on pipe size and grade) |
| Diameter | 1/8 inch to 80 inches (varies by grade and schedule) |
| Wall Thickness Classes | Schedule 40, 80, 160 Schedule XS (Extra Strong) Schedule XXS (Double Extra Strong) |
| Temperature Range | Up to 400°C (for normal carbon steel) Higher limits possible with alloyed grades (up to 600°C) |
| Applications | Oil and gas transmission Chemical processing Water transport Heat exchangers |
| Corrosion Resistance | Moderate; requires coating or corrosion inhibitors for harsh environments |
| Weldability | Good weldability for most grades, with preheating in higher carbon grades for thicker sections |
| Bending Radius | Minimum 3 times pipe diameter for cold bending (varies by material grade) |
